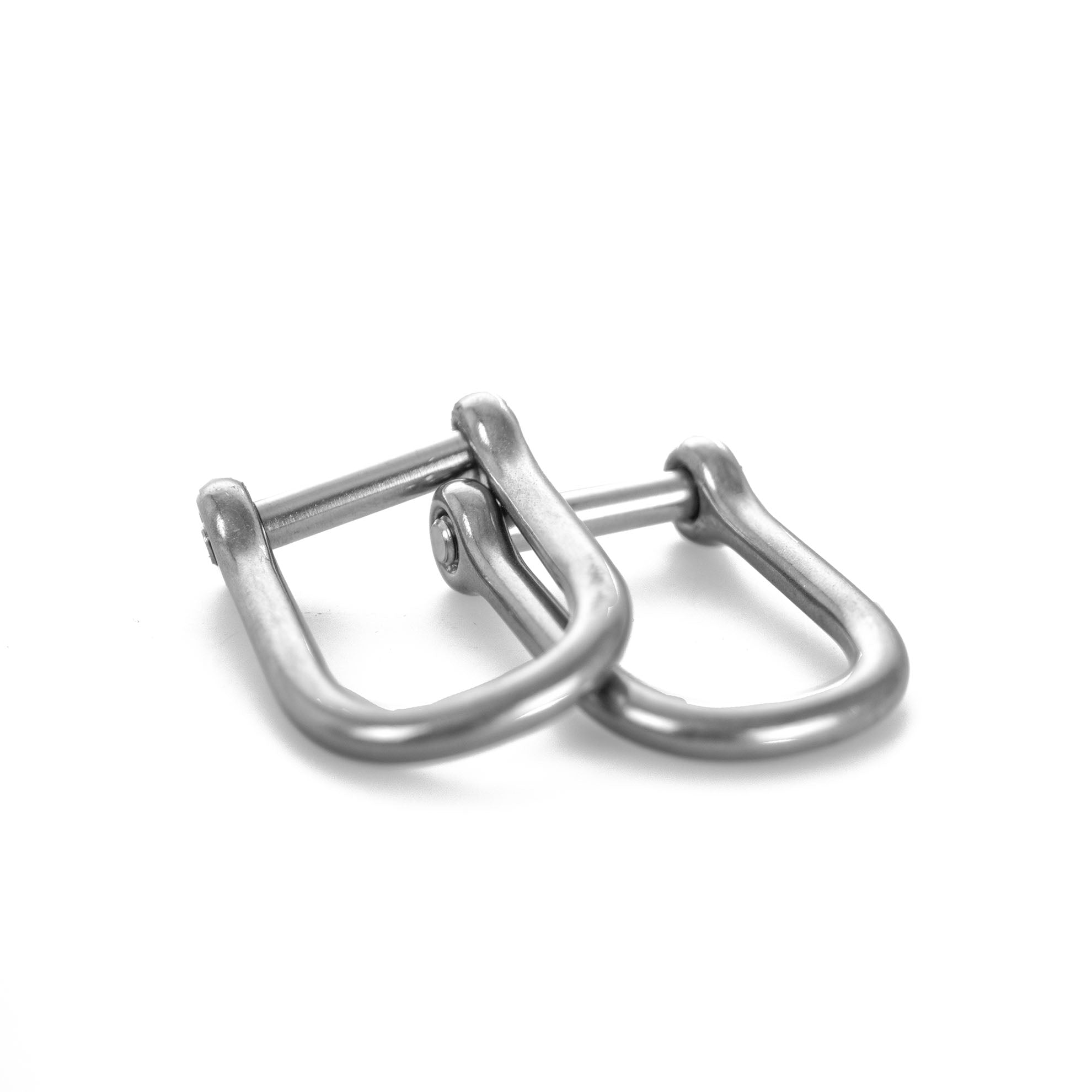

Two prodigy shackles

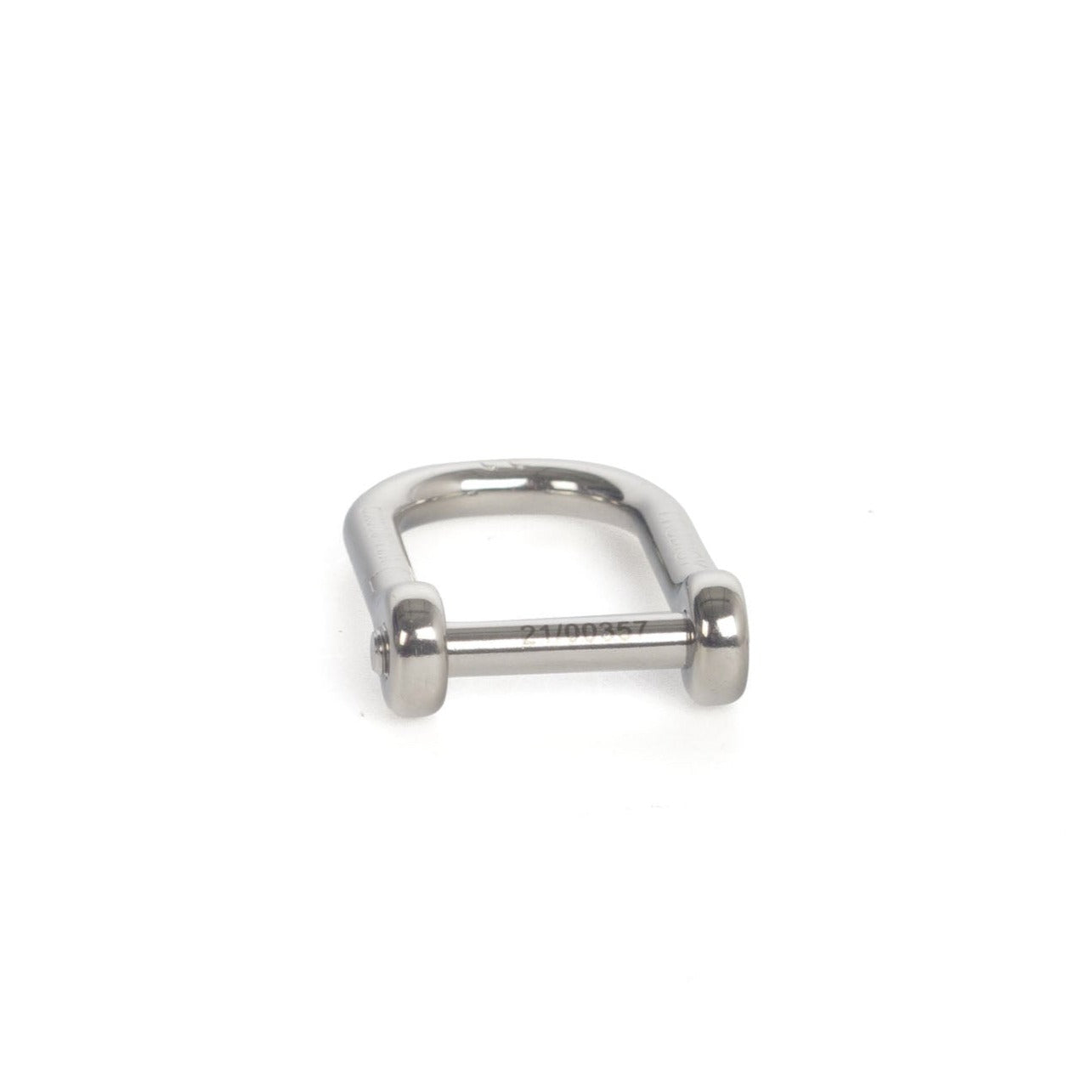

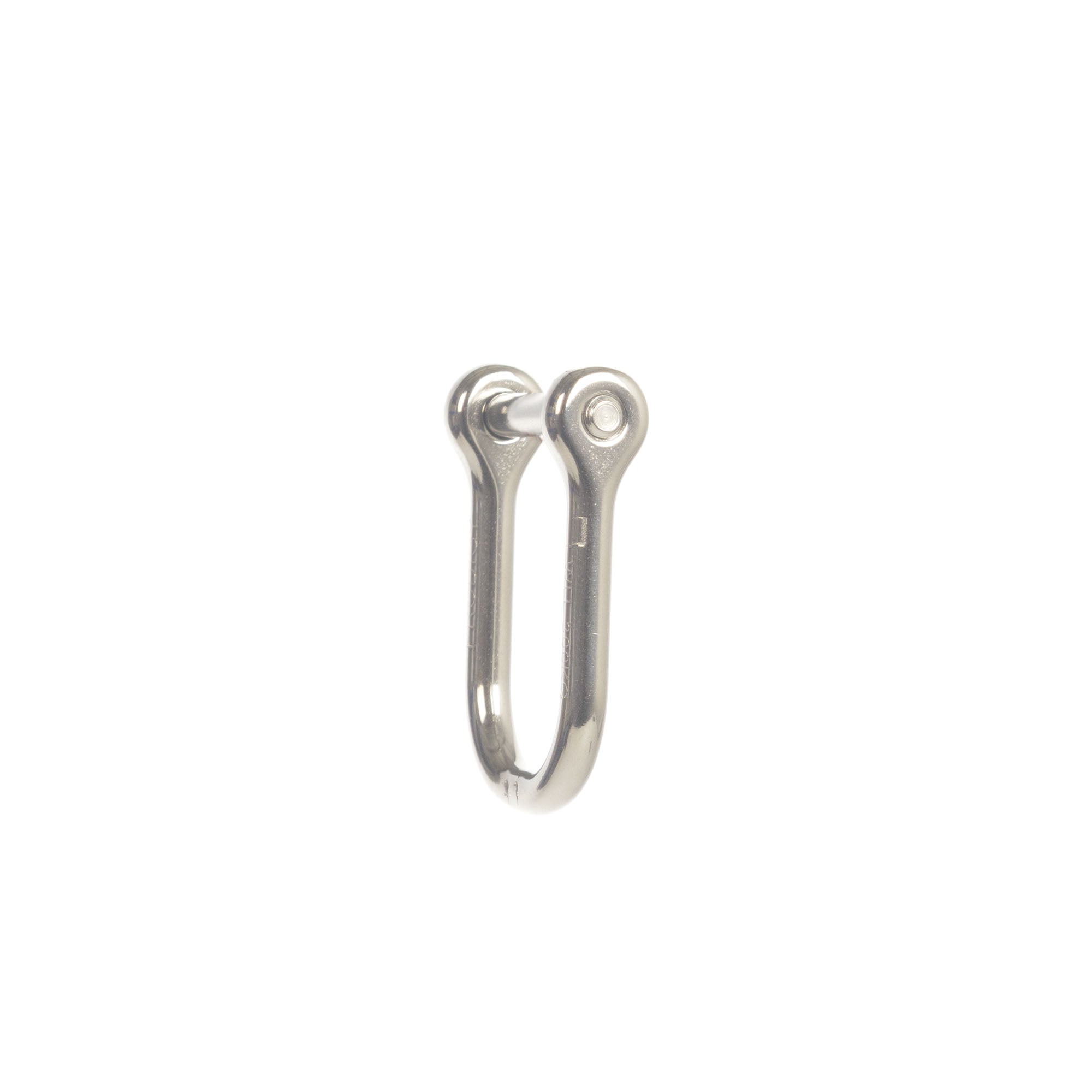

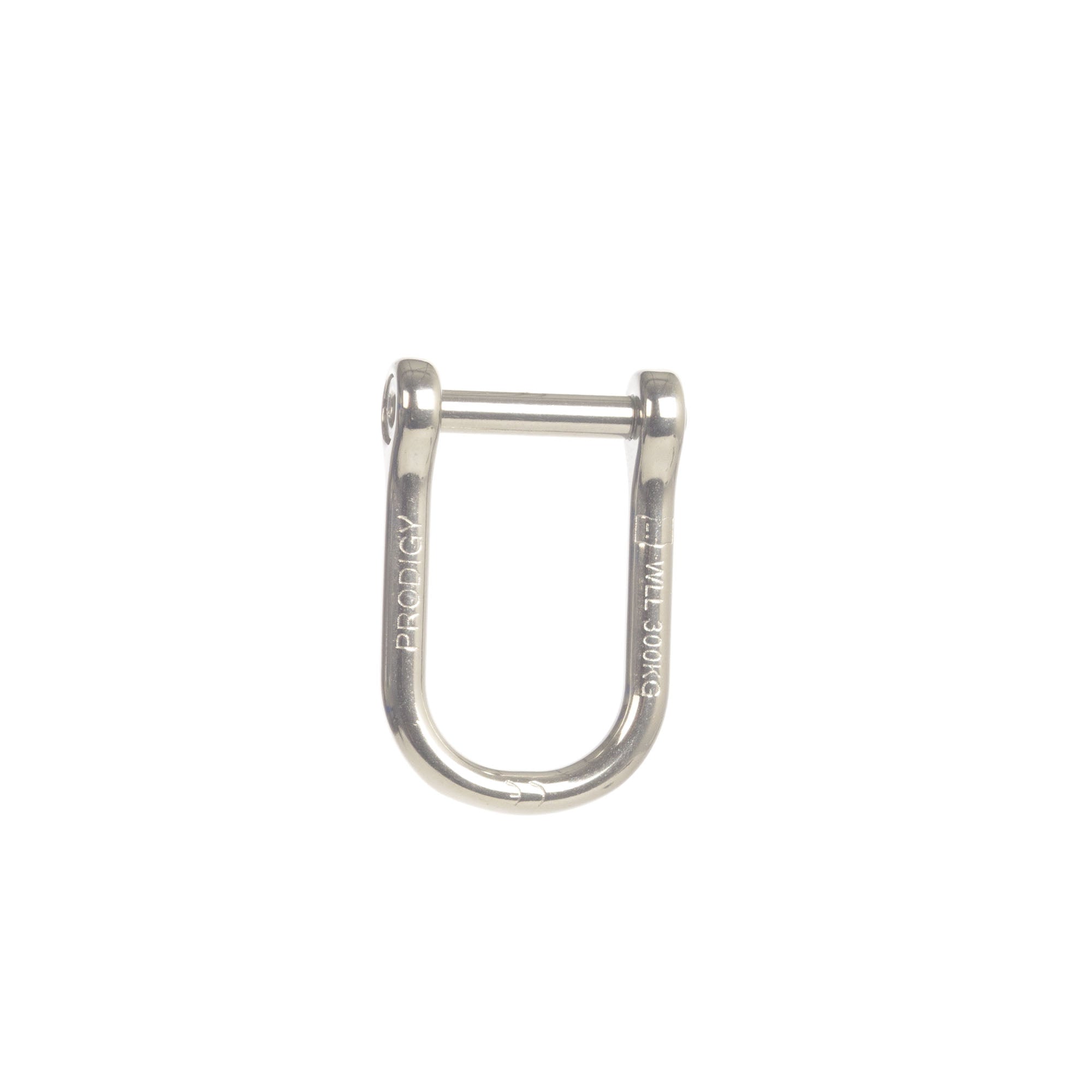

Prodigy Hex-Lock D Shackle

$21.95
10 in stock
Description

This Shackle is intended to fit a range of Prodigy Aerial products including

  • Prodigy Multi-point Aerial Hoop
  • Prodigy PolySafe Shackle Trapeze
  • Prodigy Dyna-Core Shackle Trapeze
  • Prodigy Dyna-Core Shackle Extended Trapeze

It is essential to use a threadlocker with this product.

Download the user instructions here.
Sold Individually
Shipping & Returns Info
Orders under $100 Orders over $100
Ground 1-5 business days from $6.95 Free
Express Air 1-3 business days See Checkout See Checkout

Full delivery info                          Returns info
Firetoys Sustainability Info
firetoys eco focus logoFiretoys is committed to sustainability.

We are passionate about reducing our impact on the environment. Read about our key achievements to date (including being 100% renewably powered) and our targets for the future in our Eco Policy
View More Products From Prodigy
View details

Hex-Lock Shackle

The shackles have a low profile 6mm bar, and the hex-head pin locks into place very neatly in an indentation on the shackle bar. The indentation means it locks securely and with no protruding pin to get in the way. You will need to use threadlock  on the thread of the pin to eliminate any risk of vibrations loosening the pin.

A 3mm allen key is needed to open the shackles.

Multi Use

Prodigy Hex-lock D Shackle will fit the following products:

  • Prodigy Multi-point Aerial Hoop
  • Prodigy PolySafe Shackle Trapeze
  • Prodigy Dyna-Core Shackle Trapeze
  • Prodigy Dyna-Core Shackle Extended Trapeze
  • Prodigy Dyna-Core Triangle Hanging Rope
  • Prodigy Dyna-Core Hanging rope for Aerial Hoop

High Strength

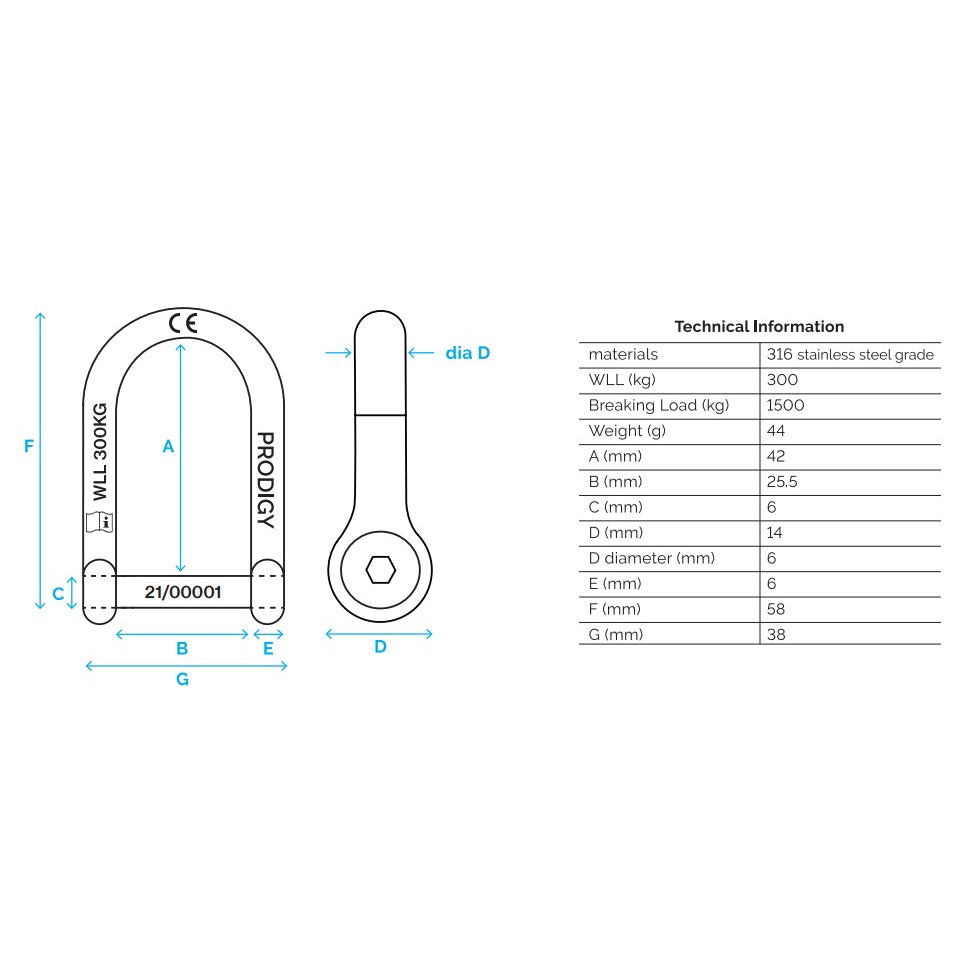

The Prodigy Hex-lock D Shackle has a Minimum Breaking Strain (MBS) of 15kN and a Working Load Limit (WLL) of 300kg with a Factor of Safety (FOS) of 5:1.

Each Shackle is individually serial numbered and samples from each batch are proof loaded to 2,300 kg.
