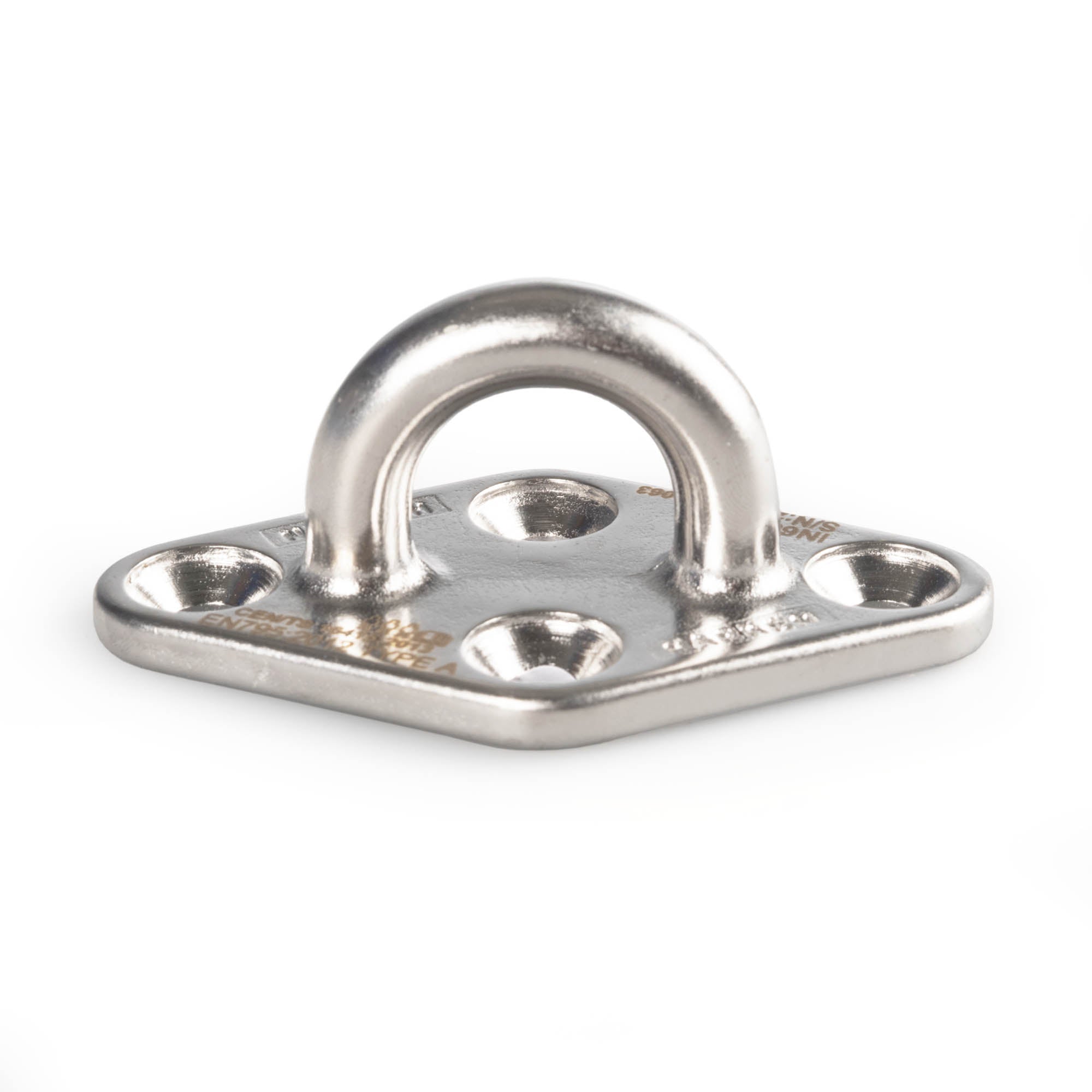

Harken diamond anchor point straight on

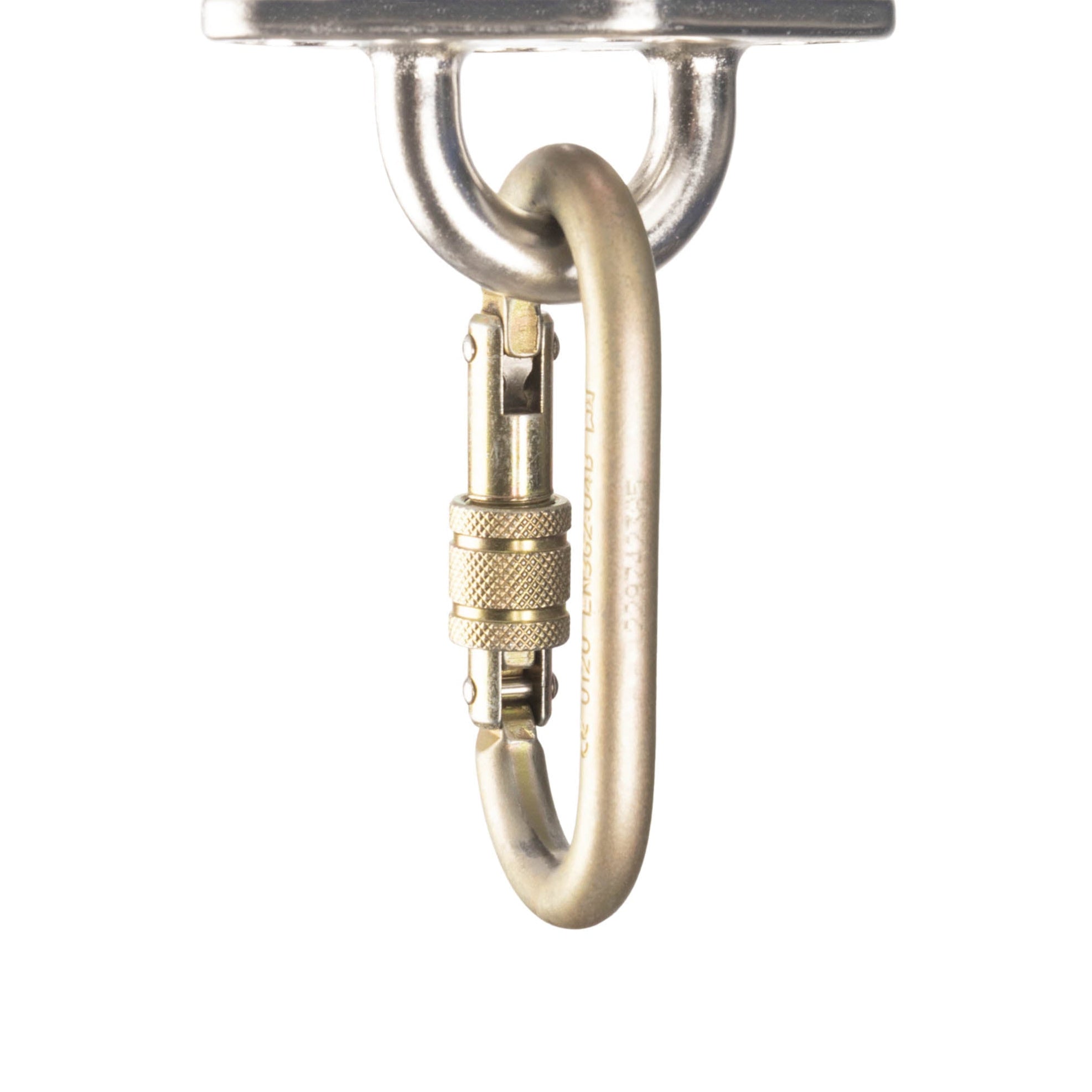

Harken diamond anchor point rigged with carabiner attached

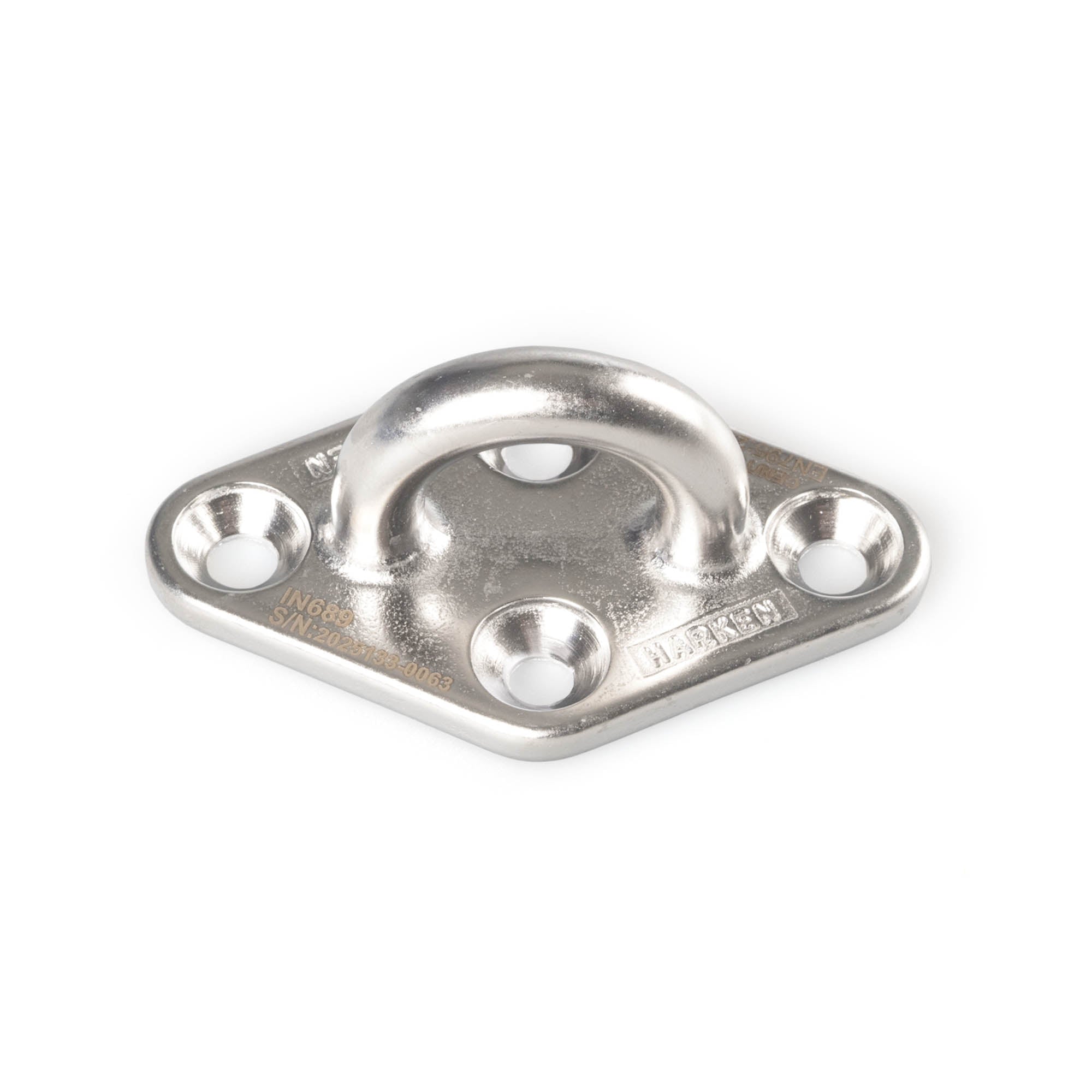

Harken diamond anchor point from above
Harken diamond anchor point from above at angle

Harken Stainless Steel Diamond Anchor Point - 98mm - IN689

$91.95
5 in stock
Description

Engineered for maximum safety and strength, this steel diamond anchor point is designed to provide a secure attachment for rigging structural concrete, timber and other substrates.

Correct and safe installation of anchor points is crucial. We recommend that you consult a structural engineer to ensure your intended structure can handle the forces and that the equipment is installed correctly.

Breaking load (kN): 63 kN/ 6.3 tonne

Fasteners not included.

Download the manual

Download the data sheet
Shipping & Returns Info
Orders under $150 Orders over $150
Economy 4-8 business days from $6.95 Free
Standard 3-4 business days $24.95 $14.95
FedEx Express 1-3 business days from $29.95 from $19.95

Full delivery info 60 day no quibble returns
Firetoys Sustainability Info
firetoys eco focus logoFiretoys is committed to sustainability.

We are passionate about reducing our impact on the environment. Read about our key achievements to date (including being 100% renewably powered) and our targets for the future in our Eco Policy
View More Products From Harken
View details

Secure Rigging

The IN689 316 stainless steel diamond anchorage point is designed to be permanently installed on a structure so that an anchor device, or personal protective equipment can be attached to it, facilitating safe working at height. It is large enough to allow free movement of attachments and will accommodate carabiners. Tested to EN795:2012 CLASS A.

Fastenings

This structural anchor point will require fixings relevant to the material you are attaching to. For example, if you are connecting to structural concrete, you’ll need suitable concrete anchors, and if fixing to structural timber, you’ll need appropriate timberscrews. Please read the manual and consult with your installer for further details.

Specification

  • Weight: 213g
  • Breaking load (kN): 63 kN
  • Certification: EN795.2012 Class A
  • Serial numbered: Yes
  • Always use structural grade fasteners (M8 recommended)
